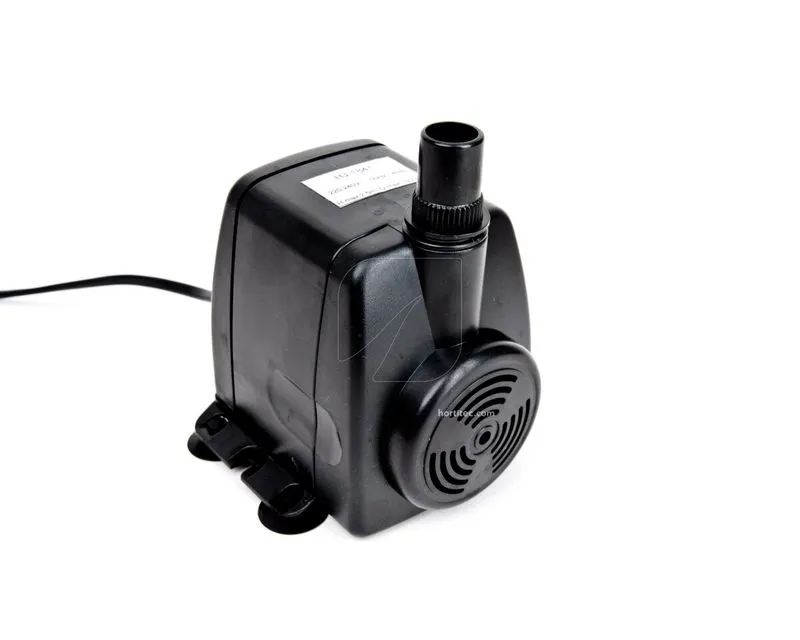

WATER MASTER Water Pump | 600 L/h

Water Master submersible pump designed to move water in applications such as small fountains, ponds, aquariums and automatic irrigation systems.

Key features

1. Type: Submersible pump
2. Declared flow rate: 600 L/h
3. Maximum head: 1 m
4. Power: 8 W
5. Power supply: 220–240 V
6. Frequency: 50 Hz
7. Cable length: 3 m

Overview

What it is for

This submersible pump is designed to move water in small circuits and reservoirs, with indicated use for small fountains, ponds, aquariums and automatic irrigation systems.

Who it is for

1. Those managing a small water recirculation in fountains or ponds
2. Those needing water movement in aquariums (where allowed by the setup)
3. Those using pumping solutions in automatic irrigation systems

What makes it different

1. Configuration for submerged operation
2. Magnetic-drive centrifugal pump architecture (as indicated in the series documentation)

How to use

Assembly

1. Place the pump on the bottom of the reservoir or in the area intended by the system.
2. Connect the outlet to the tube/outlet of the circuit according to the desired setup.
3. Make sure electrical connections remain out of the water and protected.

Startup

1. Check that the mains voltage is compatible with what is indicated on the label/documentation.
2. Make sure the pump is in the water and correctly submerged before powering it.
3. Power the pump and check that the flow is regular.

Daily management

1. Periodically check that there are no obstructions and that the intake is clear.
2. In the presence of limescale or residues, schedule more frequent cleaning.

Maintenance

1. Perform periodic cleaning (indicatively every 2–3 months, as stated in the series documentation) by removing residues and encrustations.
2. Clean the relevant parts and the rotor area with lukewarm water, then reassemble correctly.

Warnings

1. Do not lift or carry the pump by the power cable.
2. Disconnect the power supply before any intervention.
3. Do not run the pump without water.
4. Use in water within the limits indicated in the documentation (maximum temperature 35 °C).
5. Avoid electrical connections intended to remain submerged.

Technical specifications

1. Declared flow rate: 600 L/h
2. Maximum head: 1 m
3. Power: 8 W
4. Power supply: 220–240 V
5. Frequency: 50 Hz
6. Cable length: 3 m

Brand

WATER MASTER is the brand indicated in the technical documentation attached for this series of submersible pumps.

FAQ & growing tips

Can I use it in an automatic irrigation system?

The series documentation lists it among the intended uses for automatic irrigation systems.

Can I switch it on if it is not submerged?

No. The documentation indicates not to run the pump without water.

How often should it be cleaned?

The series documentation suggests periodic cleaning and indicates a guideline frequency of every 2–3 months, depending on residues and encrustations.
