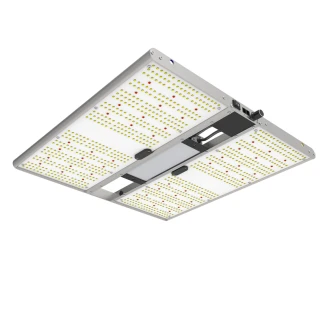

ORTOLED Quantum Board EVO 2.7 µmol/J | Growth and Flowering LED Lamp | 240W Samsung

LED lamp for indoor growing designed to support “full cycle” use in growboxes and growrooms, with practical installation and adjustment management.

Key features

1. Type: LED lamp (quantum board)
2. Intended use: growth and flowering (full cycle use)
3. Compatibility: single-unit or daisy-chain management according to the manufacturer's instructions
4. Distinctive feature: passive dissipation and intensity control

Overview

What it is for

It is used to illuminate the indoor growing area with an LED source designed to support the plant stages. It is suitable for users who want a grow-oriented LED solution with operating configurations provided by the manufacturer.

Who it is for

1. Indoor growers who want an LED lamp for a complete cycle in a growbox or growroom.
2. Users looking for a tidy installation and simple management of switching and adjustment.

What makes it different

1. Designed for full cycle use, without changing technology between stages.
2. Operating configurations and control provided by the manufacturer.
3. Structure designed for passive dissipation and more comfortable indoor use.

How to use

Installation

1. Hang the lamp using suitable fastenings and check the stability of the support.
2. Connect the power supply and arrange the cables safely, avoiding strain and humidity.
3. For daisy-chain connections or control via external devices, follow the manufacturer's instructions.

Adjustment and use

1. Adjust intensity and positioning according to the stage and plant response, following the manufacturer's directions.
2. If you use multiple units, configure master/slave correctly as described in the manual.

Maintenance

1. Clean with the device switched off and cooled down, removing dust and residues from the outer surfaces.
2. Check cables, connectors, and suspension points periodically.

Warnings

1. Avoid looking directly at the light source while it is operating.
2. Disconnect the power supply before working on or moving the lamp.

Technical specifications

Electrical data

1. Power consumption: 240 W
2. Input voltage: AC 100–277 V / 50–60 Hz

Photometric data

1. Efficacy: 2,7 µmol/J
2. PPF: 648 µmol/s
3. Light distribution: 120°
4. Spectrum: Total Agro

Mechanical data

1. Dimensions: 500×500×43 mm
2. Weight: 2,6 Kg
3. Lifetime: 60.000 hours

FAQ

Is it possible to use multiple lamps in the same setup?

Single-unit and daisy-chain operating modes are provided: for correct connections and configurations, follow the manufacturer's instructions.
