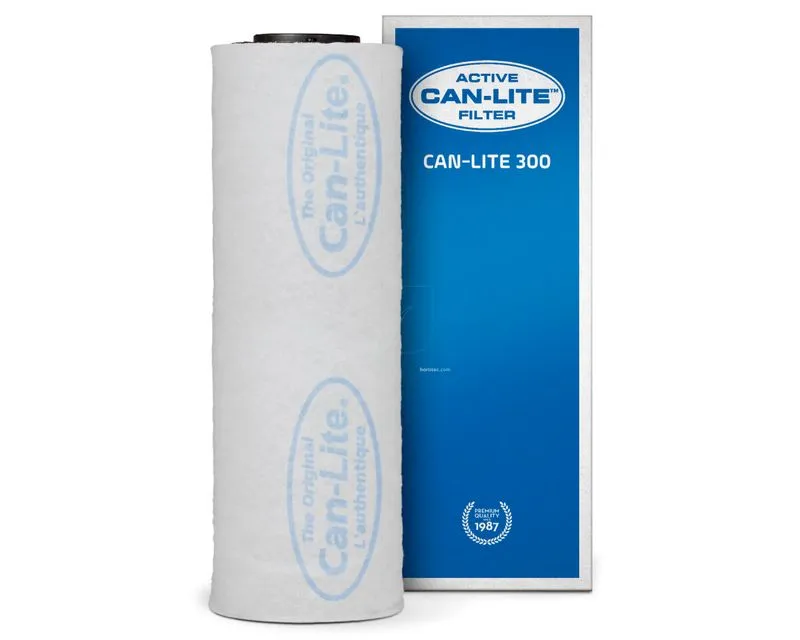

Activated carbon filter with plastic body, designed for use in air extraction systems in growboxes and growrooms. The optional-flange configuration allows integration into lines with 100 or 125 mm connections.
Key features
- Device type: Activated carbon filter
- Material: Plastic
- Flange: Optional Ø100 or Ø125 mm (not included)
- Airflow (practical capacity): 300 m³/h
- Airflow (technical capacity): 330 m³/h
- Dimensions: length 45 cm; diameter 14.5 cm
- Weight: 1.8 kg (carbon: 1.2 kg)
Overview
What it is for
It is used to treat air extracted from an indoor environment through a bed of activated carbon, with the aim of reducing odors before discharge outside. It is designed for inline installation on ventilation systems with an extractor.
Who it is for
- Indoor cultivation setups that require odor control on the extraction line
- Setups with ducts and connections of 100 mm or 125 mm (via optional flange)
- Those who prefer a lightweight filter with a plastic body
What makes it different
- Plastic body and low weight
- Optional flange selectable between 100 and 125 mm
- Airflow specifications declared both as practical capacity and technical capacity
How to use
Installation
- Select the flange compatible with your line (Ø100 or Ø125 mm) and mount it on the filter.
- Insert the filter into the air-extraction circuit and connect the ducts with clamps or suitable fixing systems.
- Make sure the joints are well sealed to avoid air leaks and bypass of the filtering material.
- Connect the filter to an extractor suitable for your system’s airflow.
Adjustment
- The filter does not require adjustments: performance depends on the extractor’s actual airflow and correct inline installation.
Maintenance
- Inspect the outside of the filter periodically and keep the installation area clean to reduce dust build-up.
- When odor control is no longer adequate, evaluate replacing the filter according to the operating conditions of your system.
Warnings
- Do not use in the presence of water or direct condensation on the filter.
- Do not obstruct the connections and do not compress the ducts.
- Install only on systems with extractor and ducts sized correctly.
Technical specifications
- Type: Activated carbon filter
- Model: 300PL
- Material: Plastic
- Practical capacity: 300 m³/h
- Technical capacity: 330 m³/h
- Length: 45 cm
- Diameter: 14.5 cm
- Weight: 1.8 kg
- Carbon weight: 1.2 kg
- Carbon bed: 2.5 cm
- Carbon type: Lite
- Flange: Optional Ø100 or Ø125 mm (not included)
- Flange codes (optional): 20100010B (Ø100 mm); 20125010B (Ø125 mm)
Brand
CAN-FILTERS offers a range of activated carbon filters designed for integration with air-extraction systems in indoor cultivation, with models available in several sizes and configurations.
FAQ & usage tips
Is the flange included?
No: the flange is indicated as optional and must be purchased separately according to the desired diameter (100 or 125 mm).
What airflow should I consider for system use?
The filter lists a practical capacity of 300 m³/h and a technical capacity of 330 m³/h: to choose the extractor and set up the system, it is useful to consider the system’s actual effective airflow (ducts, bends, and pressure losses).
Can I use it on systems with 100 or 125 mm ducts?
Yes, via an optional Ø100 or Ø125 mm flange.
